360° EMC IP68 30 Pins 19mm Shell Metal Circular Connectors

Name: 360 EMC IP68 30 Pins 19mm Shell Metal Circular Connectors
Brand: RAYMO
Price: 1 USD

Quality 360° EMC IP68 30 Pins 19mm Shell Metal Circular Connectors wholesale

Brand Name : RAYMO

Model Number : FGG EGG ECG

Certification : RoHS2.0, ISO:9001-2015, CE , SGS, REACH

Place of Origin : Shenzhen, China

MOQ : 1piece

Price : Negotiable

Payment Terms : Western Union, T/T, D/P, D/A, L/C, MoneyGram

Supply Ability : 5000pcs/week

Delivery Time : 5-7 working days

Packaging Details : 100pc/CTN

Prct name : Push pull electrical connector

Type : male female plug socket

Shell size : 6.4-19mm

Contact no. : 2-30 pins

Terminal : Solder/printed/crimp

IP ranking : IP50/IP68

Contact Now

testing instrument measurement equipment electrical connector and cable, metal circular connectors

100% compatible with LEMO/Fischer/Hirose original

EGG.0B.305.CLL = RM-EGG-0BC-305-KS .Fixed receptacle with one screw nuts, nut fixing, with key(G), 0B series, multipole 5 contacts, outer shell in natural chrome natural-plated brass, PPS insulator, female solder contacts, IP50.

RAYMO is a manufacturer that:

• Focus on manufacturing & exporting metal and plastic circular connectors, cable assembly.

• Can be 100% compatible with original

• Series has RM-B, RM-K, RM-S, RM-F,RM-E,RM-HR10A, RM-P, RM-M4, RM-M12, RM-M16,RM-U,RM-V BNC, B680,B423 , 38999, 26482
• OEM are acceptable

• CO, Form A, Form E for customer clearance

• CE, ROHS, ISO:90001-2015, SGS Audited manufacturer

• All the items can work normally after 5000 times mating

With professional R&D and excellent craftsmanship, our factory has the ability of offering customer with much more precision connectors and cable harness solution to meet customer's real needs in his field.

RM-B series metal circular push pull connector with below features:

Secure high performance push-pull self-locking system
High pin density contributing to equipment miniaturization
Alignment Key and Polarized Keying System to avoid cross-interface
360° EMC shielding
Robust and shock resistant designs
Functional in a wide temperature range from -50°C to +250°C
Available solder, PCB and right angle PCB contact

Technical Characteristics
Temperature Range	-55°C, +250°C	Resistance to vibrations	15 g [10 Hz - 2000 Hz]
Shock Resistance	100 g [ 6 ms]	Salt spray corrosion test	>96hrs
Climatical Category	50/175/21	Humidity	Up to 95% at 60°C
IP Rating	IP50	Certifications	ISO9001/ CE/ ROHS2.0/ SGS

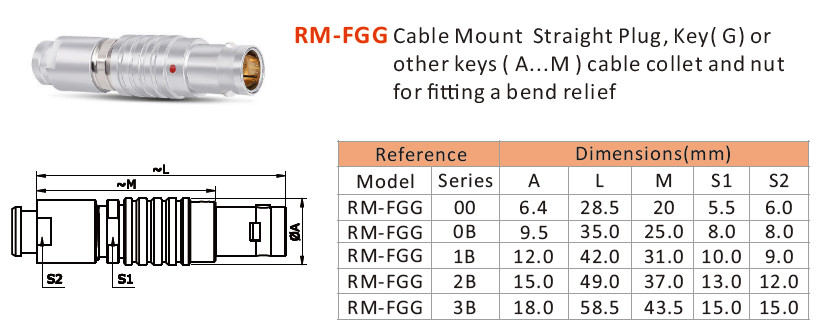

360° EMC IP68 30 Pins 19mm Shell Metal Circular Connectors

00	2	3	4
0B	2	3	4	5	6	7	9
1B	2	3	4	5	6	7	8	10	12	14	16
2B	2	3	4	5	6	7	8	10	12	14	16	19	26
3B	3	4	7	8	10	12	14	16	18	21	30

0(G)	30(A)	60(B)	45(J)
0(G)	30(A)	60(B)	90(.C)	135(D)	145(E)	155(F)		45(J)	70(K)	80(L)	110(M)
0(G)	30(A)	60(B)	90(.C)	135(D)	145(E)	155(F)	150(I)	45(J)	70(K)	80(L)
0(G)	30(A)	45(B)	60(.C)	95(D)	120(E)	145(F)		37.5(J)	52.5(K)	70(L)
0(G)	30(A)	45(B)	60(.C)	95(D)	120(E)	145(F)		37.5(J)	52.5(K)	70(L)

Applications

RAYMO connectors have been widely used in the areas of :

telecommunication,
electronics,
medical equipments,
aviation,
audio-video,
petroleum,
motor and power industries,
electrical signal connection,
IC control systems,
test and measurement instruments, ect.
